ONE:PUSH 500 | ONEARC

SEMI-AUTONOMOUS

ONE:PUSH 500

"The future of quay flexibility: Extending possibilities"

allowing larger vessel

Extended use of existing infrastructure

The ONE:PUSH can be used when the berth is not designed for a new, larger vessel. Instead of extending the pier or building dolphins or caissons.

cost saving

Realigning
and
adjusting

To fit a wider ship’s ramps to the existing quay ship’s may sometimes need to be realigned. The system can be an enabler for larger ships in existing berths at an extremely low cost.

local or remote

Customizable
Control
Options

Local or remote control over radio. The system can also be controlled from the ship’s bridge.

"Experience flexibility and extended reach"

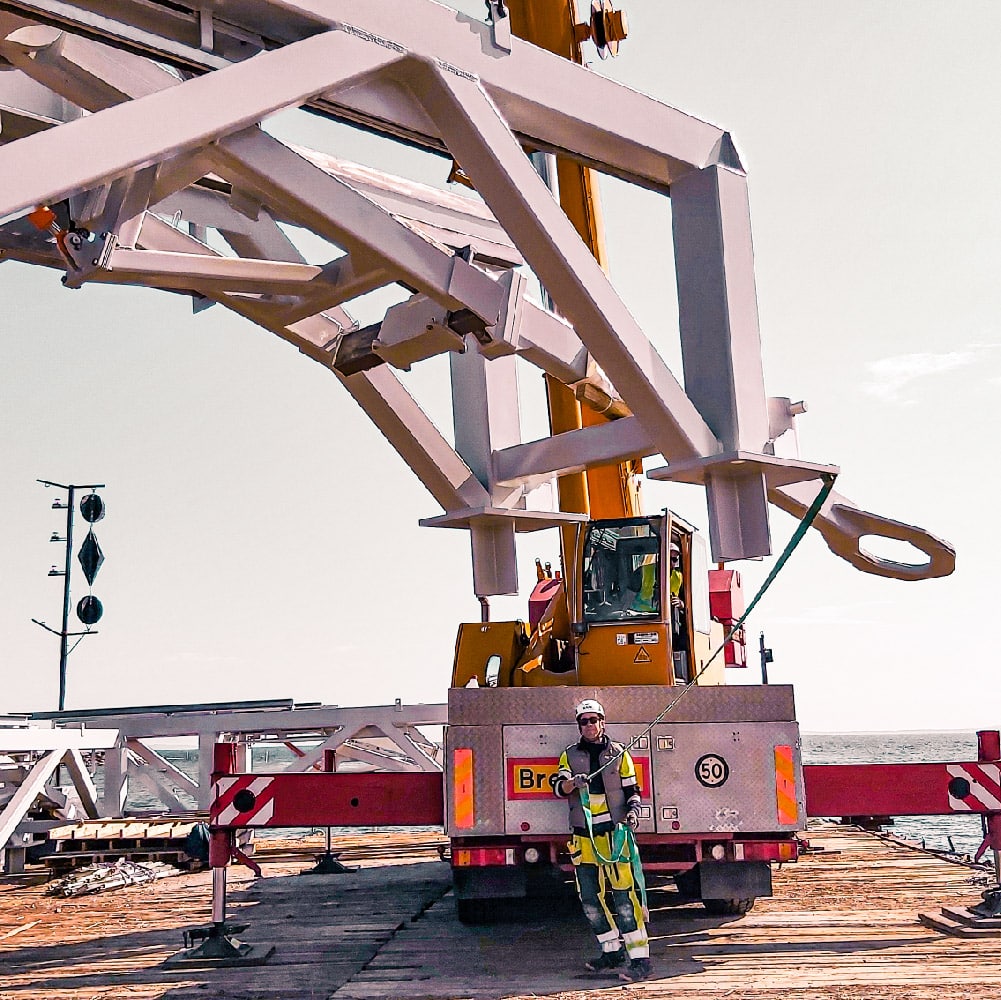

ONE:PUSH 500 in the port of Karlshamn

The ONE:PUSH system was developed especially for larger vessels calling a port and berth where the quay was not designed for the new ships. By creating fender support in the bow area of the ship the berth with a short quay could be used.

The system can also be used to realign a moored ship in the berth to allow ramp access to existing on shore linkspans and ramps.

The ONE:PUSH system can adapt to hull curvature and has a standard reach of 3.3 m. The system can be configured for different applications for ships bow and stern

In fully automatic configuration the system has a full duplex radio link to the ship and in the semi-automatic version the link is simplex. Both versions can be supplied with full integration to the ship IAS system and/or as a standalone system with its own console.

TECHNICAL SPECIFICATIONS

Frame size:	500 kN
Capacity:	50 tonnes
Push force control:	Standard stepless control
Reach:	3 300 mm
ECO-power mode:	Standard
Main power peak requirement:	11 kW

Radio link:	Optional 433 / 915 MHz or CAN Wirelss
Remote service access:	4G
Delivery options:	Turn-key or machine + installation support
Onboard console:	Optional
UPS:	Standard
